1 min Reading time If your inverter communicates with your router via Wi-Fi, the Wi-Fi password is also set in the inverter. If you switch to a new router (for example, when changing providers) or if you have changed your Wi-Fi password, you will usually need to reconfigure the inverter to maintain communication. This step-by-step guide explains how to do this. This guide applies only to SMA inverters of the Sunny Boy and Sunny TriPower types that are equipped with Wi-Fi.
For SolarEdge inverters, click here
For SMA inverters with a QR-code, click here
Follow the steps below:
(If you're unable to resolve the issue, please contact our service department.)
Array
(
[0] => Array
(
[MIGX_id] => 1
[step] => Step 1: Before You Start
[description] => <p>Make sure you have two codes at hand. One is the so-called WPA2-PSK code of the inverter. This code consists of 16 characters and can be found on the label on the inverter (on the right side of the device), or on the sticker on the back of the inverter's manual. </p>
<p><img style="margin: 5px 10px 5px 10px;" title="WPA2-PSK code" src="assets/uploads/service/wifi%20opnieuw%20instellen/WPA2-PSK%20code.jpg" alt="WPA2-PSK code" width="400" height="533" /></p>
<p>The other code you need is your new Wi-Fi password.</p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 1: Before You Start
)
[1] => Array
(
[MIGX_id] => 2
[step] => Step 2: Search for the Inverter’s Wi-Fi Network
[description] => <div class="description">
<p>First, you need to log into the inverter itself. You can do this with a PC with Wi-Fi, a tablet, or a smartphone. Search for the inverter’s network in the list of available Wi-Fi networks. You will recognize it by the name: SMA….. followed by some numbers. This is also the serial number of the inverter.</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="wifi netwerken zoeken" src="assets/uploads/service/wifi%20opnieuw%20instellen/Verbinden%20met%20netwerk.jpg" alt="wifi netwerken zoeken" width="500" height="330" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 2: Search for the Inverter’s Wi-Fi Network
)
[2] => Array
(
[MIGX_id] => 3
[step] => Step 3: Connect to the Wi-Fi Network
[description] => <div class="description">
<p>The SMA network will ask for a password. Enter the 16-character WPA2-PSK password here. The password is case-sensitive. Click 'Connect.' </p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Invullen WPA2-PSK wachtwoord" src="assets/uploads/service/wifi%20opnieuw%20instellen/Invullen%20WPA2-PSK%20wachtwoord.jpg.jpg" alt="Invullen WPA2-PSK wachtwoord" width="500" height="346" /></p>
<p>If you entered the password correctly, you will now see 'Connected, no internet.' This is correct: your PC, smartphone, or tablet is now connected to the inverter but not to the internet.</p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 3: Connect to the Wi-Fi Network
)
[3] => Array
(
[MIGX_id] => 4
[step] => Step 4: Enter the IP Address
[description] => <div class="description">

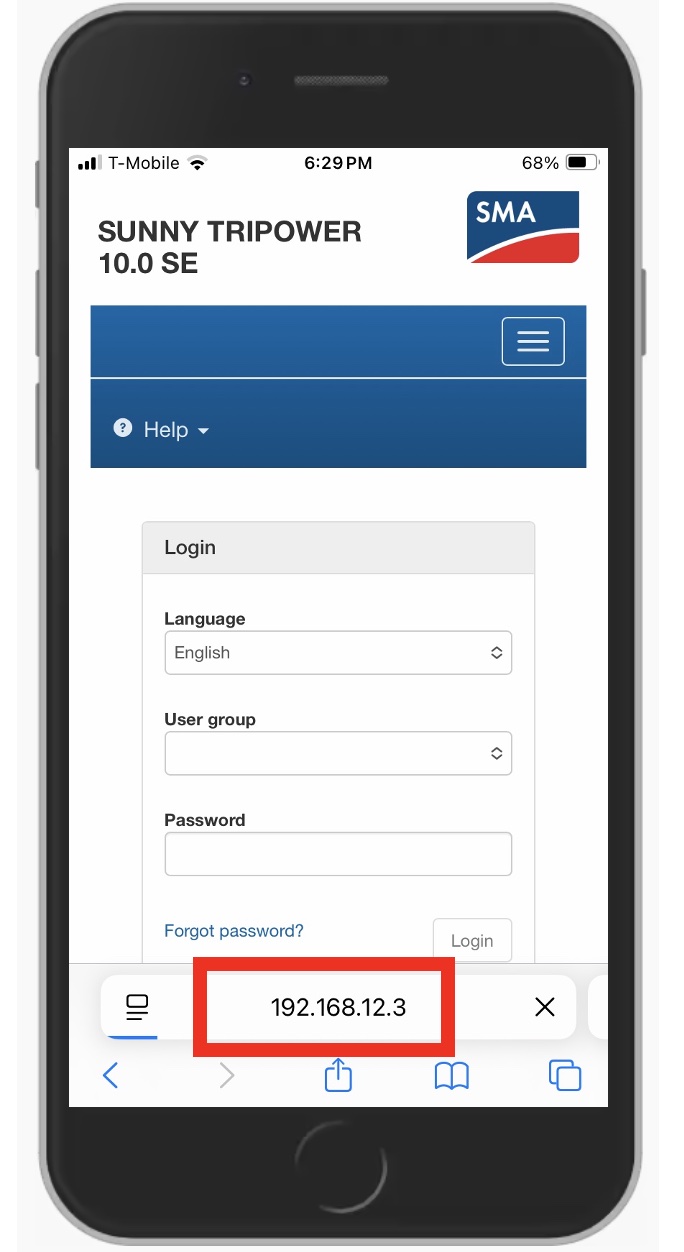

<p>Now, open a browser on your PC, smartphone, or tablet. For example, Safari on an iPhone or Chrome on an Android phone. We need to reach the login page of the inverter, so enter the following IP address in the browser's address bar: <strong>192.168.12.3.</strong> If the SMA screen does not appear, you can try the old IP address 192.168.100.1.</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Invullen IP adres" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-enter-ip-address.jpg" alt="Enter IP address" width="300" height="234" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 4: Enter the IP Address
)
[4] => Array
(
[MIGX_id] => 5
[step] => Step 5: Login
[description] => <div class="description">
<p>To log in, select the user group 'Installer,' and as the password, either use : the four digits of your postal code followed by the letters in uppercase, an underscore, and lowercase 'zf' (for Zonnefabriek), which should look something like this: 1234AB_zf. In some cases we had to add a zero in front, so then you can try something like: 01234AB_zf. Or (for installations dating from before September 2019) only the 4 digits of your postal code (without the letters). Then click 'Log In.'</p>
</div>
<p><img style="vertical-align: text-bottom; margin: 5px 10px 5px 10px;" title="Inloggen" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-logging-in-as-installer.jpg" alt="Logging into SMA inverter with installer password" width="600" height="557" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 5: Login
)
[5] => Array
(
[MIGX_id] => 6
[step] => Step 6: Search for the Installation Wizard
[description] => <div class="date-item">
<div class="description">

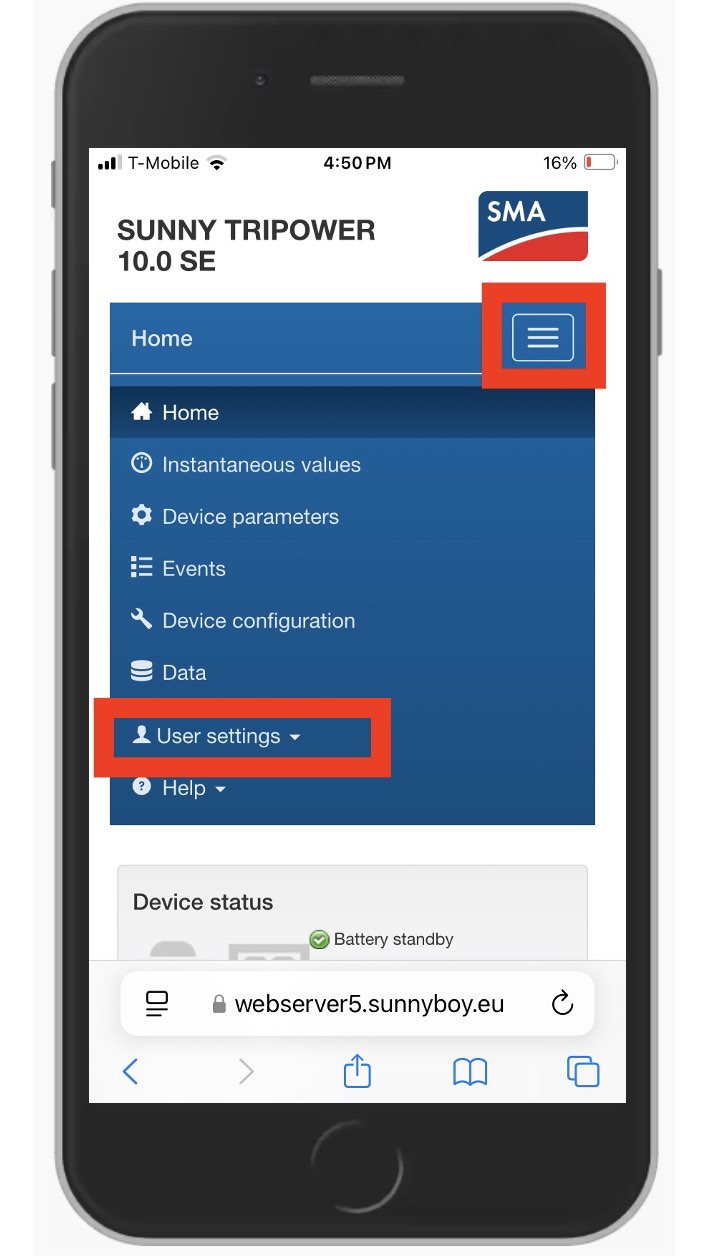

<p>Once logged in, we want to start the installation wizard. If you're using a smartphone or tablet, click on 'User Settings.' First you may have to click on the three horizontal stripes top right to make the User Settings appear. Note: If you’re working on a PC instead, click on the icon of a bust (on the right side of the blue bar).</p>
<p><img src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-select-user-settings.jpg" alt="select user settings on SMA inverter screen" width="300" /></p>
</div>
</div>
[disabled] =>
[step_ro] =>
[_this.value] => Step 6: Search for the Installation Wizard
)
[6] => Array
(
[MIGX_id] => 7
[step] => Step 7: Start the Installation Wizard
[description] => <div class="description">

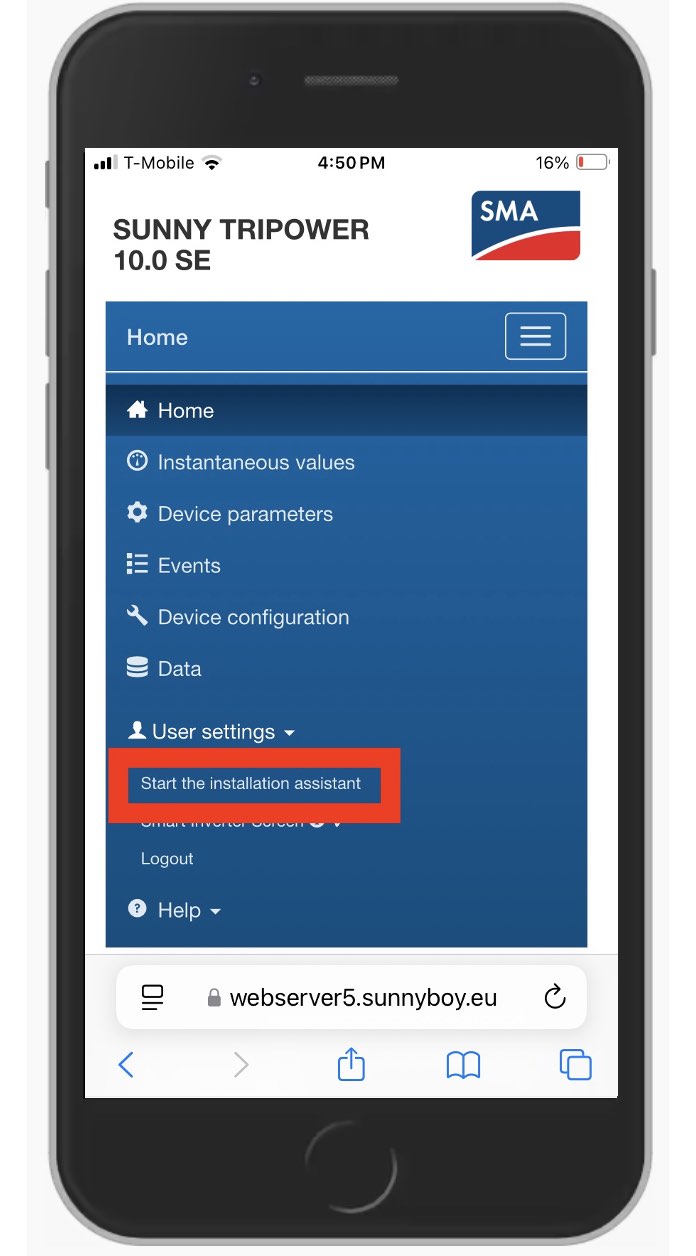

<p>Start the 'Installation Assistant' (sometimes called: 'Installation Wizard')</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Installatiewizard starten" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-start-installation-assistant.jpg" alt="start the installation wizard or assistant" width="300" height="193" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 7: Start the Installation Wizard
)
[7] => Array
(
[MIGX_id] => 8
[step] => Step 8: Network Configuration
[description] => <div class="description">
<p>The next step is 'Network Configuration.' Scroll down and click on WLAN. WLAN stands for 'Wireless LAN,' which is the same as Wi-Fi (LAN stands for Local Area Network).</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Klik op WLAN" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-click-on-wlan.jpg" alt="Click on WLAN" width="300" height="498" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 8: Network Configuration
)
[8] => Array
(
[MIGX_id] => 9
[step] => Step 9: Choose New Wi-Fi Network
[description] => <div class="description">

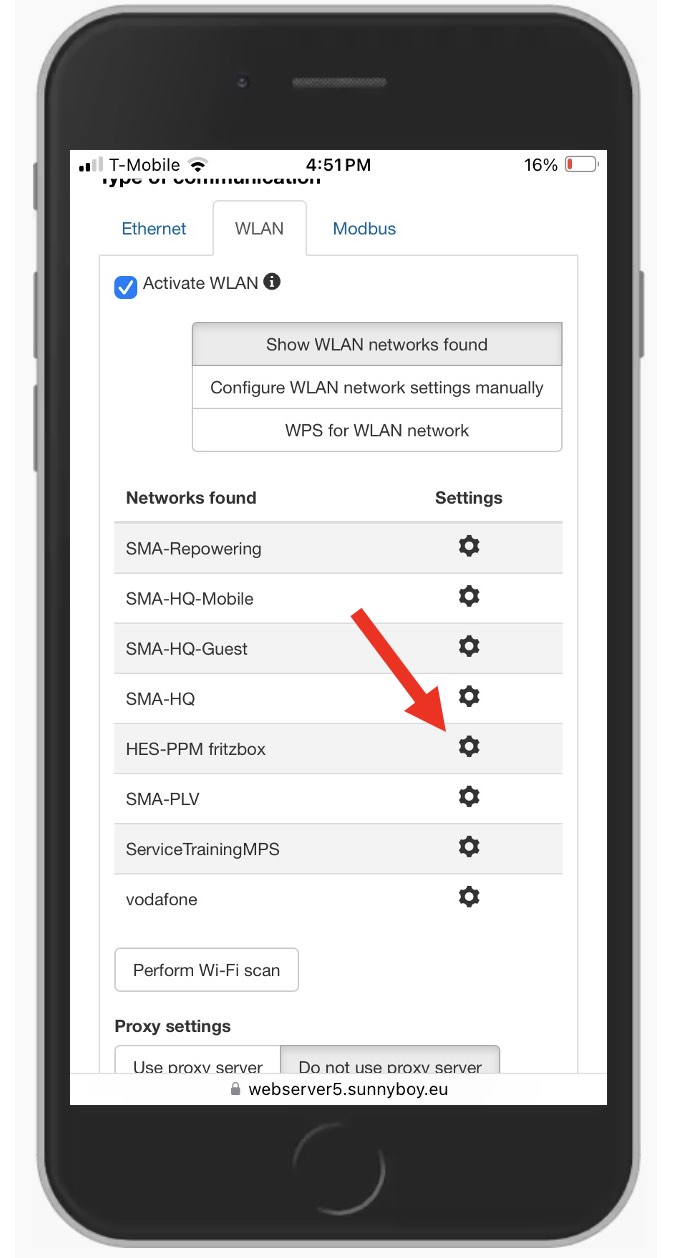

<p>You will see a list of all available Wi-Fi networks. One of the networks should be the network from your new router. (If this new network is not listed, you can perform a 'WLAN scan' via the button at the bottom of the page.). Click on the cog wheel next to the correct Wi-Fi network</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Gevonden netwerken weergeven" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-select-your-wifi.jpg" alt="Displaying the Wi-Fi networks" width="300" height="224" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 9: Choose New Wi-Fi Network
)
[9] => Array
(
[MIGX_id] => 10
[step] => Step 10: Change Network Settings
[description] => <div class="description">

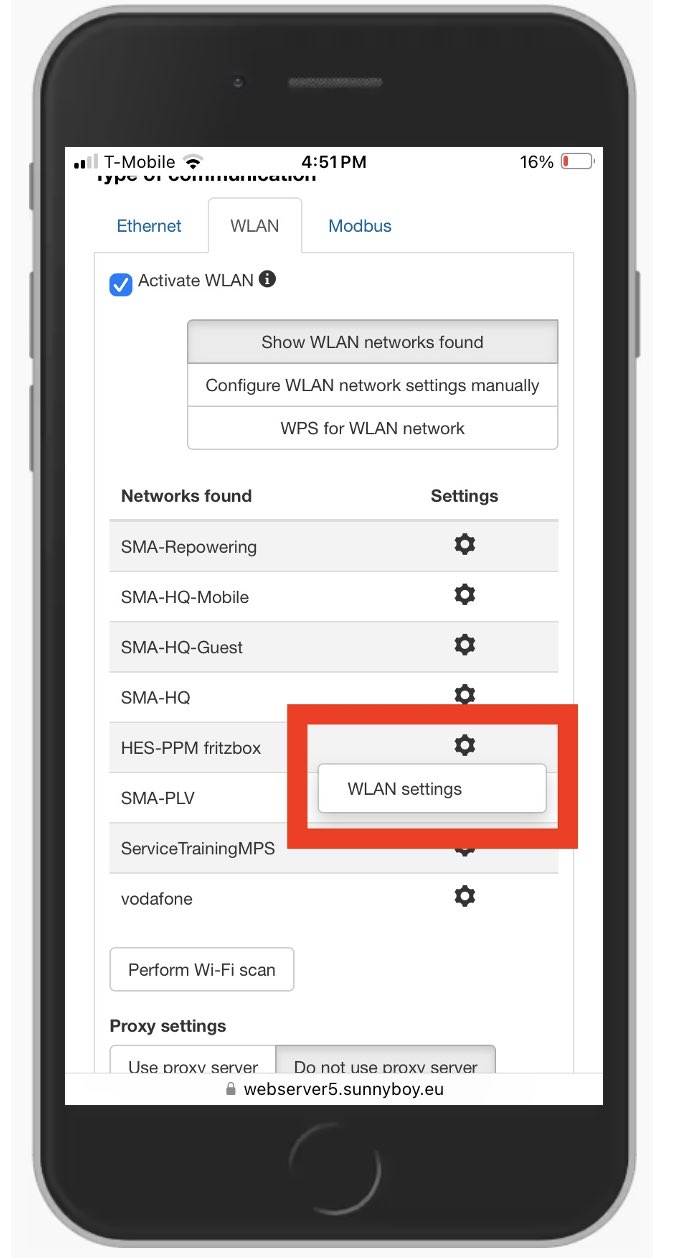

<p>A pop-up box appears with the words 'WLAN settings': Click on that box</p>
</div>
<p><img title="Klik op tandwieltje" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-box-with-wlan-settings.jpg" alt="box with WLAN settings appears" width="300" height="233" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 10: Change Network Settings
)
[10] => Array
(
[MIGX_id] => 11
[step] => Step 11: Enter Wi-Fi Password
[description] => <div class="description">
<p>Enter your new Wi-Fi password and then click on the 'Connect to WLAN' button</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Klik op WLAN-instellingen" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-enter-wifi-password-and-connect.jpg" alt="Enter Wi-Fi password on SMA inverter" width="300" height="248" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 11: Enter Wi-Fi Password
)
[11] => Array
(
[MIGX_id] => 12
[step] => Step 12: Check the status
[description] => <div class="description">
<p>If all went well, the status of the Wi-Fi connection will have changed to 'OK', with a green check mark next to it</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="WiFi wachtwoord invullen" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-status-wifi-ok.jpg" alt="WiFi status OK" width="300" height="223" /></p>
<p> </p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 12: Check the status
)
[12] => Array
(
[MIGX_id] => 13
[step] => Step 13: Save and Next
[description] => <div class="description">

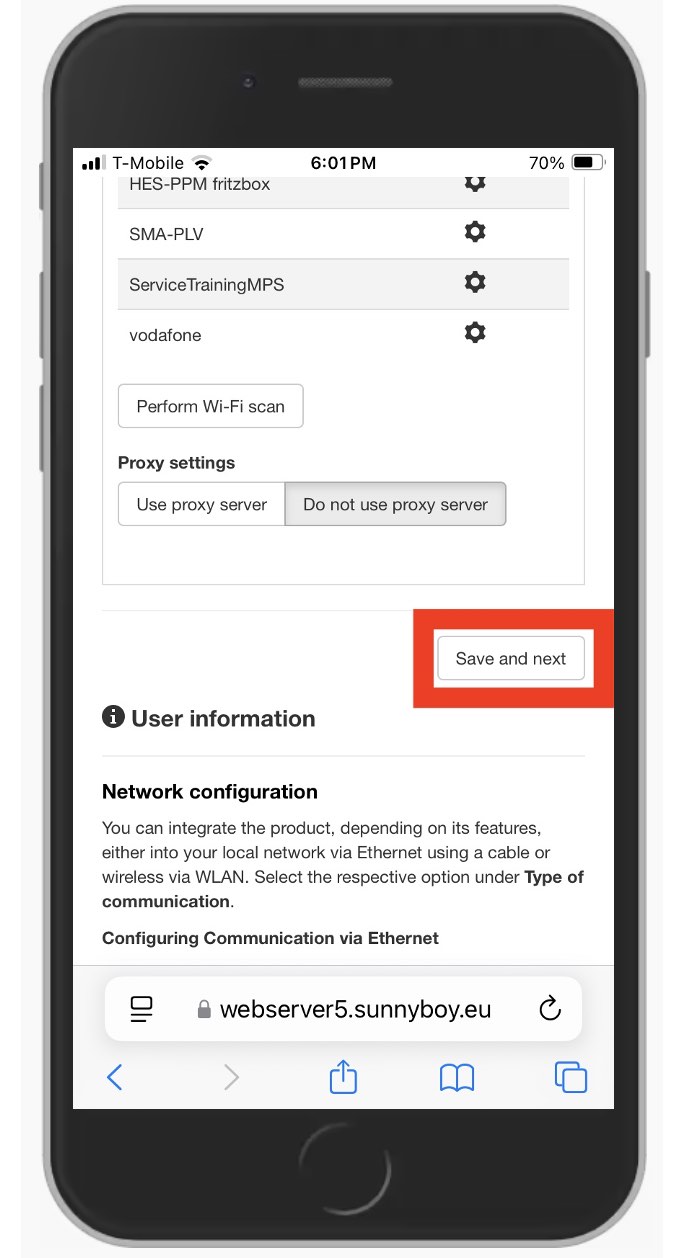

<p>Scroll down to where you see a box on the right saying 'Save and Next'. Click on it</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Status OK" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-save-and-next.jpg" alt="Save and Next" width="300" height="242" /></p>
<p> </p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 13: Save and Next
)
[13] => Array
(
[MIGX_id] => 14
[step] => Step 14: Move to Summary
[description] => <div class="description">

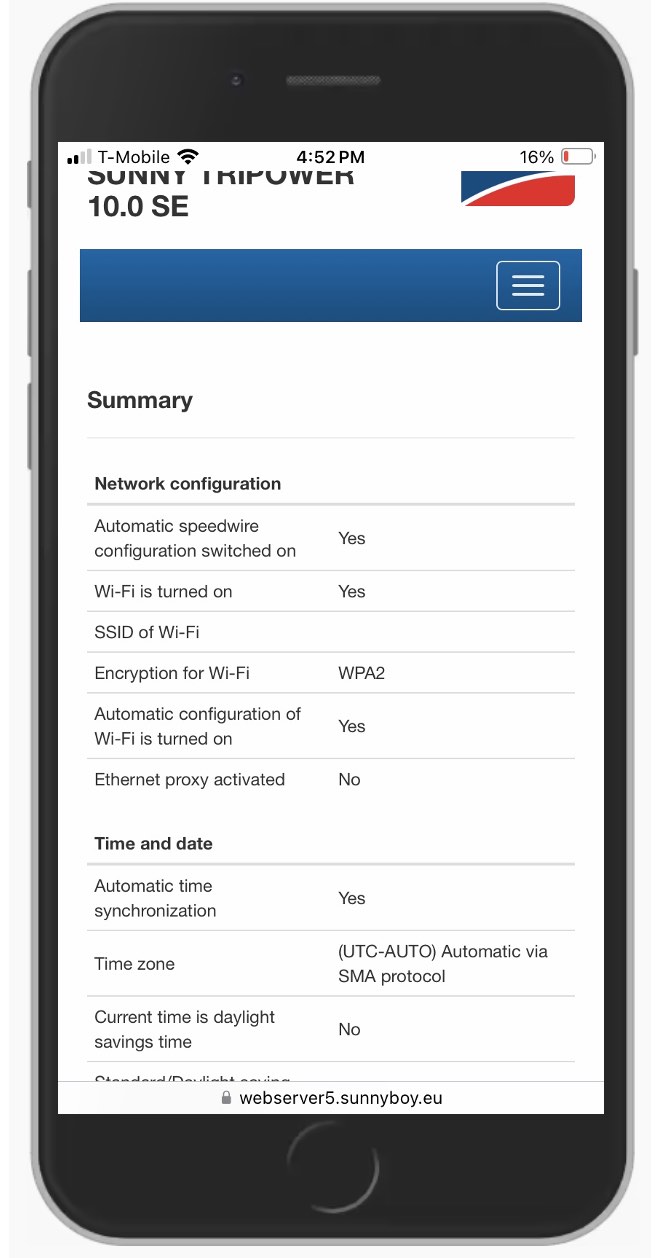

<p>On the next few pages you don't have to change anything. Just look for the 'Save and Next' or 'Next' box on each page and click on it. In the end you will get to a 'Summary' page. Scroll down until you get to the box that says 'Next' and click on it.</p>
</div>
<p><img style="margin: 5px 10px 5px 10px;" title="Opslaan en verder" src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-summary-top.jpg" alt="Summary page on Inverter " width="300" height="74" /></p>
[disabled] =>
[step_ro] =>
[_this.value] => Step 14: Move to Summary
)
[14] => Array
(
[MIGX_id] => 15
[step] => Step 15: Finish
[description] => <div class="">
<div class="timeline-block uk-grid">
<div class="uk-width-1-2@s uk-width-1-1">
<div class="dates hovered">
<div class="date-item">
<div class="description">
<p>You will return to he inverter home screen. If everything went well, the communication with the new router—and thus with the internet and Sunny Portal—should now be established. You can now close the browser on your smartphone, tablet, or PC and reconnect your device to your own Wi-Fi network. Once the connection is successful, you will have a steady <a href="[[~2007]]">blue LED</a> on your inverter. The graphs on Mijn Zonnefabriek or in the Zonnefabriek app will not update immediately; that usually takes a few hours.</p>
</div>
<div class="hover-image">If you're unable to resolve the issue, please contact our <a href="our-service/customer-service-and-contact/" target="_blank" rel="noopener">service department</a>.</div>
</div>
</div>
</div>
</div>
</div>
<div class="author-info uk-width-1-1 mt-4">
<div class="p-3 uk-background-muted uk-flex uk-flex-middle flex-column uk-width-1-1">
<div class="photo uk-flex pr-3 uk-flex-middle flex-column mb-2"> </div>
</div>
</div>
[disabled] =>
[step_ro] =>
[_this.value] => Step 15: Finish
)
)
Make sure you have two codes at hand. One is the so-called WPA2-PSK code of the inverter. This code consists of 16 characters and can be found on the label on the inverter (on the right side of the device), or on the sticker on the back of the inverter's manual.
The other code you need is your new Wi-Fi password.
First, you need to log into the inverter itself. You can do this with a PC with Wi-Fi, a tablet, or a smartphone. Search for the inverter’s network in the list of available Wi-Fi networks. You will recognize it by the name: SMA….. followed by some numbers. This is also the serial number of the inverter.
The SMA network will ask for a password. Enter the 16-character WPA2-PSK password here. The password is case-sensitive. Click 'Connect.'
If you entered the password correctly, you will now see 'Connected, no internet.' This is correct: your PC, smartphone, or tablet is now connected to the inverter but not to the internet.
Now, open a browser on your PC, smartphone, or tablet. For example, Safari on an iPhone or Chrome on an Android phone. We need to reach the login page of the inverter, so enter the following IP address in the browser's address bar: 192.168.12.3. If the SMA screen does not appear, you can try the old IP address 192.168.100.1.
To log in, select the user group 'Installer,' and as the password, either use : the four digits of your postal code followed by the letters in uppercase, an underscore, and lowercase 'zf' (for Zonnefabriek), which should look something like this: 1234AB_zf. In some cases we had to add a zero in front, so then you can try something like: 01234AB_zf. Or (for installations dating from before September 2019) only the 4 digits of your postal code (without the letters). Then click 'Log In.'
Once logged in, we want to start the installation wizard. If you're using a smartphone or tablet, click on 'User Settings.' First you may have to click on the three horizontal stripes top right to make the User Settings appear. Note: If you’re working on a PC instead, click on the icon of a bust (on the right side of the blue bar).
Start the 'Installation Assistant' (sometimes called: 'Installation Wizard')
The next step is 'Network Configuration.' Scroll down and click on WLAN. WLAN stands for 'Wireless LAN,' which is the same as Wi-Fi (LAN stands for Local Area Network).
You will see a list of all available Wi-Fi networks. One of the networks should be the network from your new router. (If this new network is not listed, you can perform a 'WLAN scan' via the button at the bottom of the page.). Click on the cog wheel next to the correct Wi-Fi network
A pop-up box appears with the words 'WLAN settings': Click on that box
Enter your new Wi-Fi password and then click on the 'Connect to WLAN' button
If all went well, the status of the Wi-Fi connection will have changed to 'OK', with a green check mark next to it
Scroll down to where you see a box on the right saying 'Save and Next'. Click on it
On the next few pages you don't have to change anything. Just look for the 'Save and Next' or 'Next' box on each page and click on it. In the end you will get to a 'Summary' page. Scroll down until you get to the box that says 'Next' and click on it.
