There are multiple ways to access the user interface of the inverter. We show here the method using the SMA Energy App and the QR code on the inverter.

Array
(
    [0] => Array
        (
            [MIGX_id] => 1
            [step] => Step 1: The SMA Energy App
            [description] => <p>Get the SMA Energy App and click on 'My display area' at the bottom right:</p>
<p><img src="assets/uploads/faq/FAQ-instellen-reservecapaciteit-noodtsroom/klik-op-mijn-weergavegebied.jpg" alt="My display area" width="548" height="1084" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 1: The SMA Energy App
        )

    [1] => Array
        (
            [MIGX_id] => 2
            [step] => Step 2: open the scanner

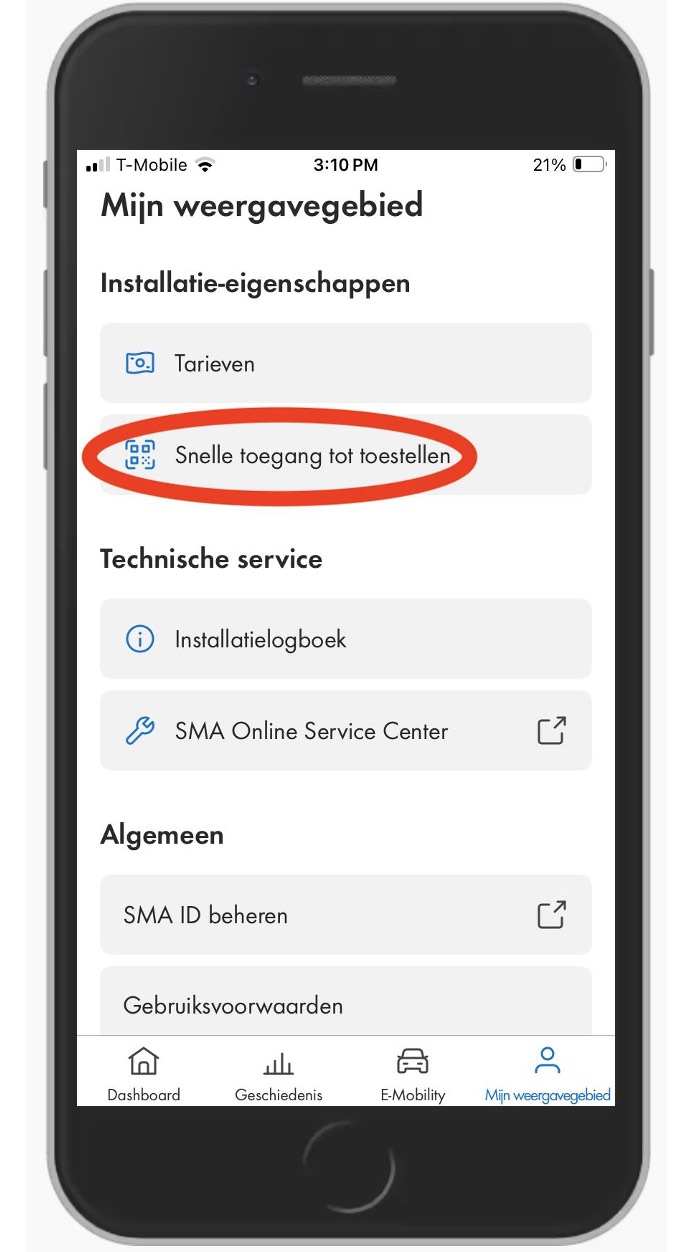

            [description] => <p>Click on 'Quick access to devices'. This activates the camera so you can scan the QR code on the inverter</p>
<p><img src="assets/uploads/faq/FAQ-wifi-instellen-SMA/faq-qr-code-scanner.jpg" alt="Activate scanner" width="300" height="538" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 2: open the scanner
        )

    [2] => Array
        (
            [MIGX_id] => 3
            [step] => Step 3: Locate the QR code

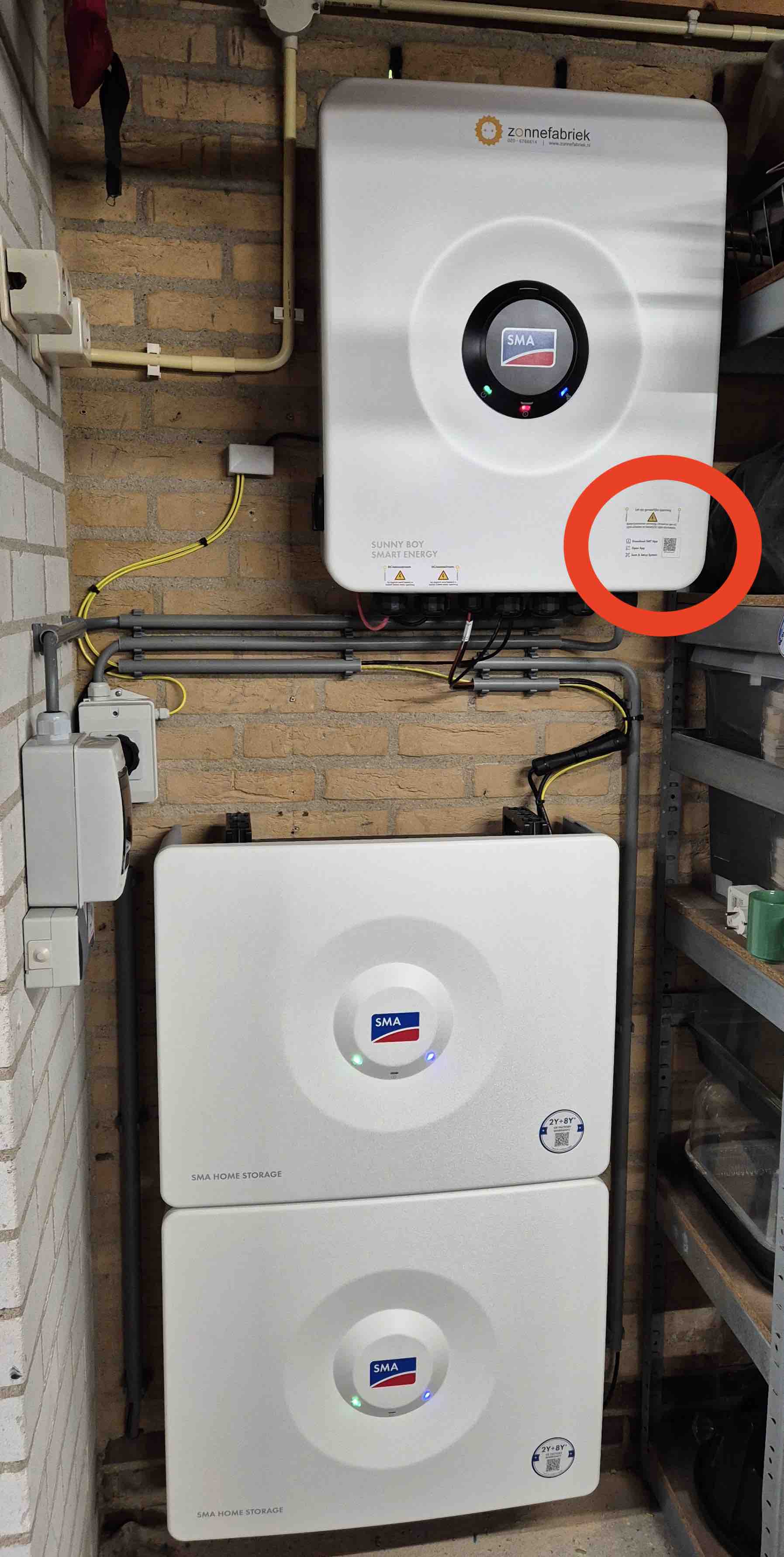

            [description] => <p>Point the phone's scanner at the QR code of the inverter. In this photo it can be seen in the red circle</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/sbse-met-qr-code-in-cirkel.jpg" alt="QR code" width="300" height="596" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 3: Locate the QR code
        )

    [3] => Array
        (
            [MIGX_id] => 4
            [step] => Step 4: Login screen
            [description] => <p>Now you arrive at the login screen of the inverter. Here you can log in with the username and password combination. We usually use the customer's last name with a capital letter at the beginning and no spaces (also no prefixes) as username. For the password we use: the digit zero, followed by the postal code, followed by an underscore, followed by zf in lowercase, for example: 01234AB_zf</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/aanmeldscherm-sbse-instructies.jpg" alt="SBSE login screen" width="589" height="590" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 4: Login screen
        )

    [4] => Array
        (
            [MIGX_id] => 5
            [step] => Step 5: Click on configuration
            [description] => <p>You arrive at the SBSE dashboard. Click here on the gear icon for configuration</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/klik-op-configuratie-sbse.jpg" alt="configuration" width="300" height="589" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 5: Click on configuration
        )

    [5] => Array
        (
            [MIGX_id] => 6
            [step] => Step 6: Click on Device parameters

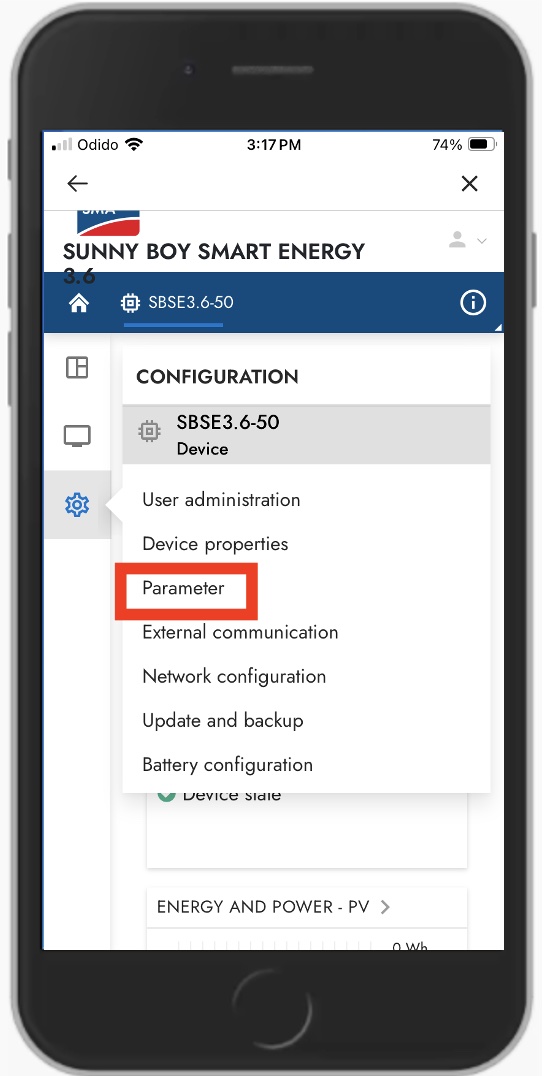

            [description] => <p>Click on 'Device parameters' (or Parameters in the English version)</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/klik-op-apparaatparameters-sbse.jpg" alt="Parameters" width="300" height="591" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 6: Click on Device parameters
        )

    [6] => Array
        (
            [MIGX_id] => 7
            [step] => Step 7: Search for the parameter 'DevRStr'

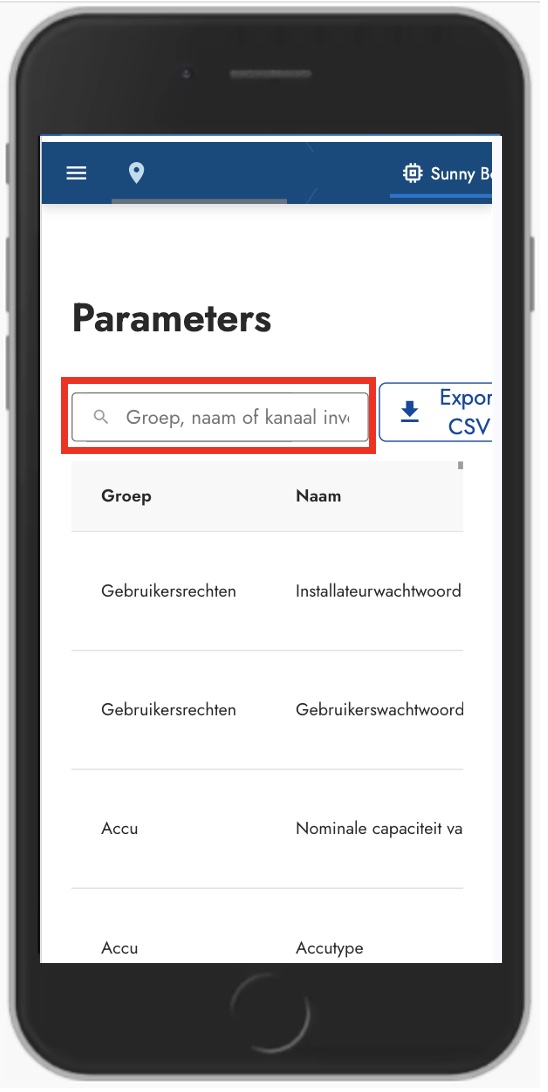

            [description] => <p>A search bar appears on the page: type the word 'devrstr' here (This is an abbreviation of 'device restart')</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/zoekbalk-parameters.jpg" alt="search bar parameters" width="300" height="598" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 7: Search for the parameter 'DevRStr'
        )

    [7] => Array
        (
            [MIGX_id] => 8
            [step] => Step 8: scroll to the right

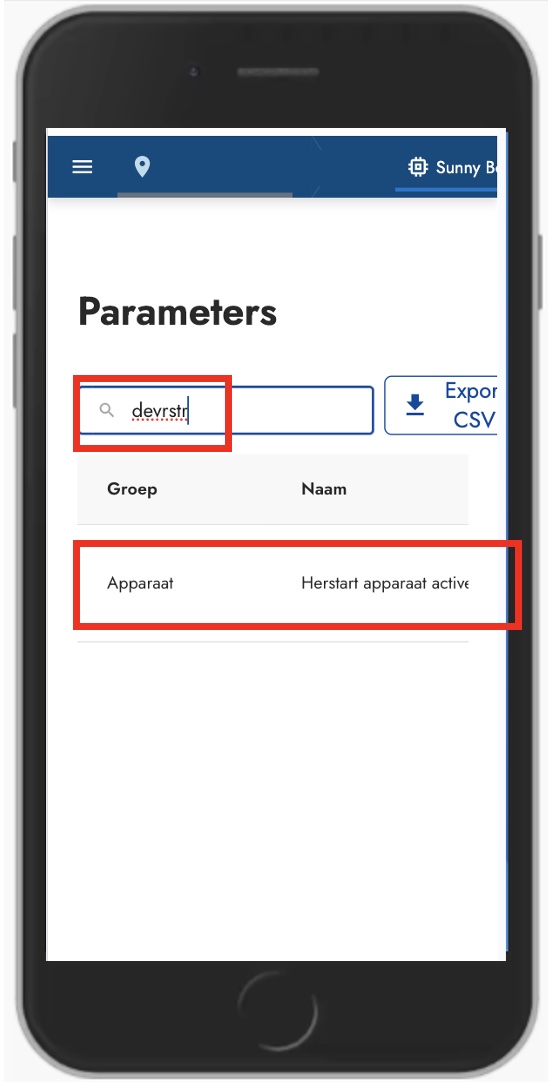

            [description] => <p>When you have entered 'devrstr' the parameter 'activate device restart' appears on screen: scroll to the right so you can change the value</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/invullen-devrstr-in-zoekbalk.jpg" alt="activate restart parameter" width="300" height="588" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 8: scroll to the right
        )

    [8] => Array
        (
            [MIGX_id] => 9
            [step] => Step 9: choose 'Execute'

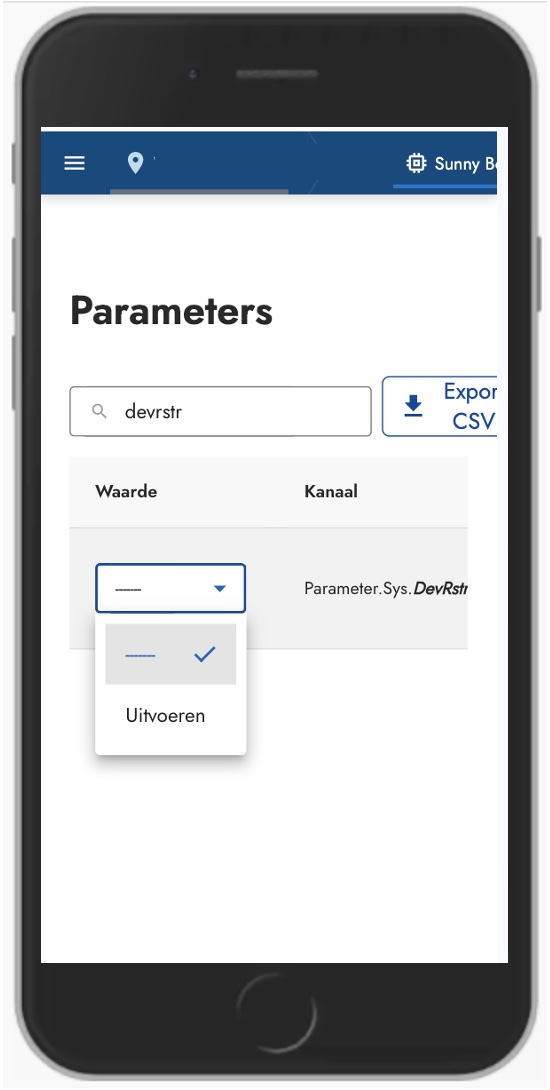

            [description] => <p>Click on the dropdown and change the value to 'Execute'</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/devrstr-op-uitvoeren.jpg" alt="select execute" width="300" height="595" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 9: choose 'Execute'
        )

    [9] => Array
        (
            [MIGX_id] => 10
            [step] => Step 10: Click on Save

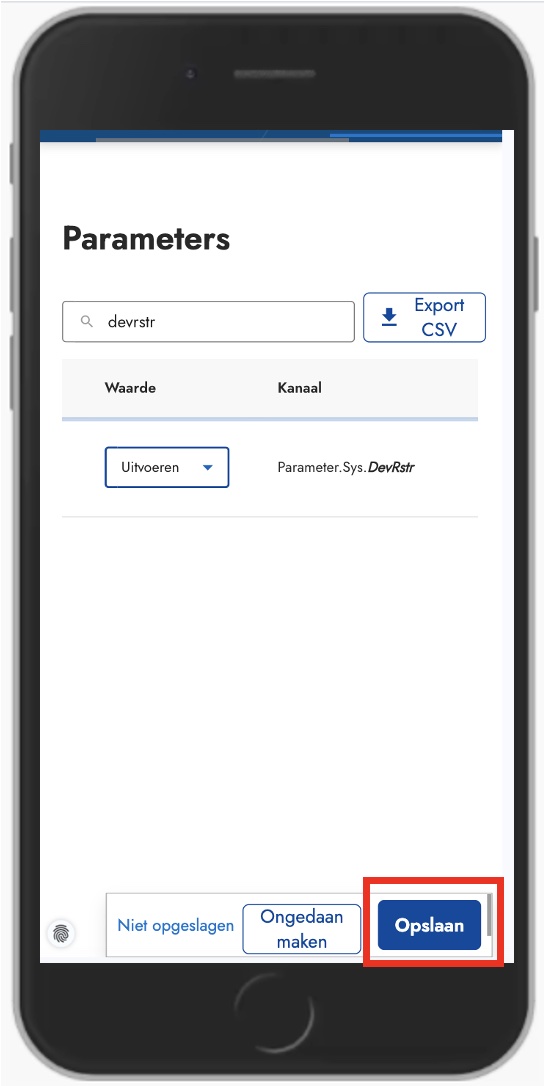

            [description] => <p>After you have selected 'Execute' you can click on 'Save' at the bottom of the page: the reset will now be executed</p>
<p><img src="assets/uploads/faq/FAQ-reset-SMA/devrstr-opslaan.jpg" alt="save reset" width="300" height="595" /></p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 10: Click on Save
        )

    [10] => Array
        (
            [MIGX_id] => 11
            [step] => Step 11: Done
            [description] => <p>You have now completed the steps. The inverter will now restart. First all lights will turn off and then all turn on, and after a few minutes the reset will be fully completed and only the green and blue LED will burn constantly. If everything is correct, communication with the monitoring portal will also resume after some time.</p>
            [disabled] =>
            [step_ro] =>
            [_this.value] => Step 11: Done
        )

)
